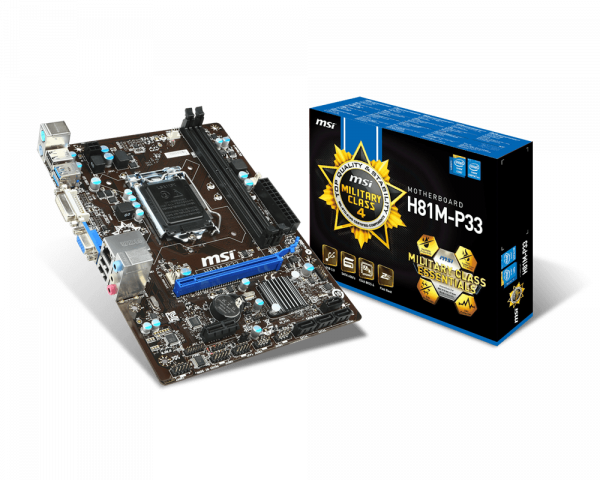

H81 MSI

Thông tin về H81 MSI :

Hãng sản xuất

MSI

Chủng loại

H81M-P33

CPU hỗ trợ

• 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1150 socket

Chipset

• Intel® H81 Express Chipset

Bộ nhớ trong

• Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max
- Supports Dual-Channel mode

VGA onboard

• SATAIII controller integrated in Intel® H81 chipset
- Up to 6Gb/s transfer speed.
- Supports two SATAIII ports (SATA1~2) by H81


• SATAII controller integrated in Intel® H81 chipset
- Up to 3Gb/s transfer speed.
- Supports two SATAII ports (SATA3~4) by H81

Âm thanh

• Chip integrated by Realtek® ALC887
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 spec

Khe mở rộng

• 1 x PCIe 2.0 x16 slot
• 1 x PCIe x1 slot

Chuẩn lưu trữ

Cổng giao tiếp trước và sau

- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 4 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x RJ45 LAN Jack
- 1 x 3 in 1 audio jack
- 1 x Graphics card port
- 1 x DVI-I port

Kích thước

• 22.6cm(L) x 17.3cm(W) Micro-ATX Form Factor
