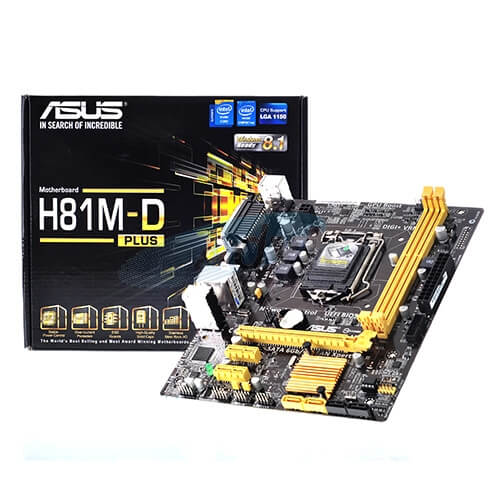

H81 ASUS full onboard cao cấp

H81 ASUS full onboard cao cấp

Mã sản phẩm: H81 ASUS

Thương hiệu: ASUS

Giá bán: 0 đ

Tình trạng: LIÊN HỆ

Bảo hành: 1T

Số lượng:

Thông tin về H81 ASUS:

Hãng sản xuất

ASUS

Chủng loại

ASUS H81M-D,K,E

CPU hỗ trợ

Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0

Chipset

Intel® H81

Bộ nhớ trong

2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)

VGA onboard

N/A

Âm thanh

Realtek® ALC887 8-Channel High Definition Audio CODEC

Khe mở rộng

1 x PCIe x16
2 x PCIe 2.0 x1

Chuẩn lưu trữ

2 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s), dark brown
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology

Kết nối mạng

Realtek® 8111G, 1 x Gigabit LAN Controller(s)



Cổng giao tiếp trước và sau

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
2 x USB 2.0
1 x Parallel port(s)
3 x Audio jack(s)

Công nghệ tích hợp

ASUS 5X Protection. New UEFI BIOS. EZ DIY. AI Suite 3

Kích thước

(30.5 cm x 24.4 cm) ATX Form Factor

H81 ASUS

VI TÍNH BẢO LỘC

Địa chỉ: 827 TRẦN PHÚ -TP.BẢO LỘC - T.LÂM ĐỒNG

Hotline:  0916757505 Thái (bán hàng) –0986387816 (mua hàng)

Giờ làm việc: 8h00 – 18h00 kể cả ngày lễ và chủ nhật

Website: vitinhbaoloc.com

Fanpage: https://www.facebook.com/vitinhbaoloclamdong



Mô tả sản phẩm:

CPU
Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel® H81
Memory
2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
Graphic
Integrated Graphics Processor
VGA output support : RGB port
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Expansion Slots
1 x PCIe x16 (x16 mode, yellow)
2 x PCIe 2.0 x1
3 x PCI
Storage
Intel® H81 chipset :
2 x SATA 6Gb/s port(s), yellow
2 x SATA 3Gb/s port(s), dark brown
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1
LAN
Realtek® 8111G, 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
USB Ports
Intel® H81 chipset :
2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
Intel® H81 chipset :
8 x USB 2.0 port(s) (2 at back panel, black, 6 at mid-board)
Special Features
ASUS 5X Protection :
- ASUS DIGI+ VRM - 3 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS EPU :
- EPU
ASUS Exclusive Features :
- GPU Boost
- AI Suite 3
- Ai Charger
- Anti-Surge
- Low EMI Solution
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Slot
Operating System Support
Windows® 8.1
Windows® 8
Windows® 7
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.0 (blue)
2 x USB 2.0
1 x COM port(s)
1 x Parallel port(s)
3 x Audio jack(s)
Internal I/O Ports
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 2.0, WOL by PME, PXE
Support Disc
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
Form Factor
ATX Form Factor
12 inch x 7.4 inch ( 30.5 cm x 18.8 cm )
