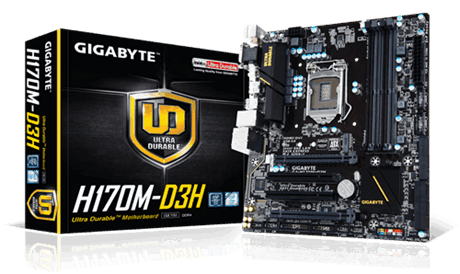

Gigabyte H170M-D3H

Hãng sản xuất

Model

GA-H170M-D3H DDR4

Chipset

Intel® H170

CPU hỗ trợ

- Hỗ trợ CPU Core i7/i5/i3/Pentium®/Celeron® Processors thế hệ thứ 6 (Socket 1151)
- L3 cache varies with CPU

RAM hỗ trợ

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB
Dual channel memory architecture
Support for DDR4 2133 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

Đồ họa

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
   * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
   * Support for HDMI 1.4 version.
4. Support for up to 3 displays at the same time
5. Maximum shared memory of 512 MB
6. Support for 2-Way AMD CrossFire™ technology

Lưu trữ

1. 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
2. 2 x SATA Express connectors
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10


Audio

1. Realtek® ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

LAN

 Intel® GbE LAN chip (10/100/1000 Mbit)

Khe cắm mở rộng

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
   (All of the PCI Express slots conform to PCI Express 3.0 standard.)
3. 2 x PCI slots

USB

1. 8 x USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Kết nối I/O bên trong

1. 1 x 24-pin ATX main power connector
2. Š1 x 8-pin ATX 12V power connector
3. Š1 x M.2 Socket 3 connector
4. 2 x SATA Express connectors
5. Š6 x SATA 6Gb/s connectors
6. Š1 x CPU fan header
7. Š3 x system fan headers
8. Š1 x front panel header
9. Š1 x front panel audio header
10. Š1 x S/PDIF Out header
11. Š2 x USB 3.0/2.0 headers
12. Š2 x USB 2.0/1.1 headers
13. Š1 x Trusted Platform Module (TPM) header
14. Š1 x Thunderbolt™ add-in card connector
15. Š1 x serial port header
16. Š1 x parallel port header
17. Š1 x Clear CMOS jumper

Kết nối bảng phía sau

1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x HDMI port
5. 4 x USB 3.0/2.0 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
